Product Description
HUGE viewable area. 39% larger than Klearview Plus. 3.94 in x 3.28 in
• Use high quality LCD and multilayer optical interference filter, provide clear view and permanent UV/IR protection up to DIN 15.
• Power supply by solar cells and Lithium batteries (Replaceable).
• Mask made of high impact resistant special Nylon.
• Digital Low Battery Warning Indicator.
• Ample mask space, especially for ears and neck.
• Adapter for Plastic Magnifying Lens
• CE EN 379, ANSI Z87.1 , CSA Z94.3.
• Uses standard 4-1/2" x 5-1/4" clear outside protective lenses. Inside lenses are 4-1/4" x 2-5/8"
Technical Specs:

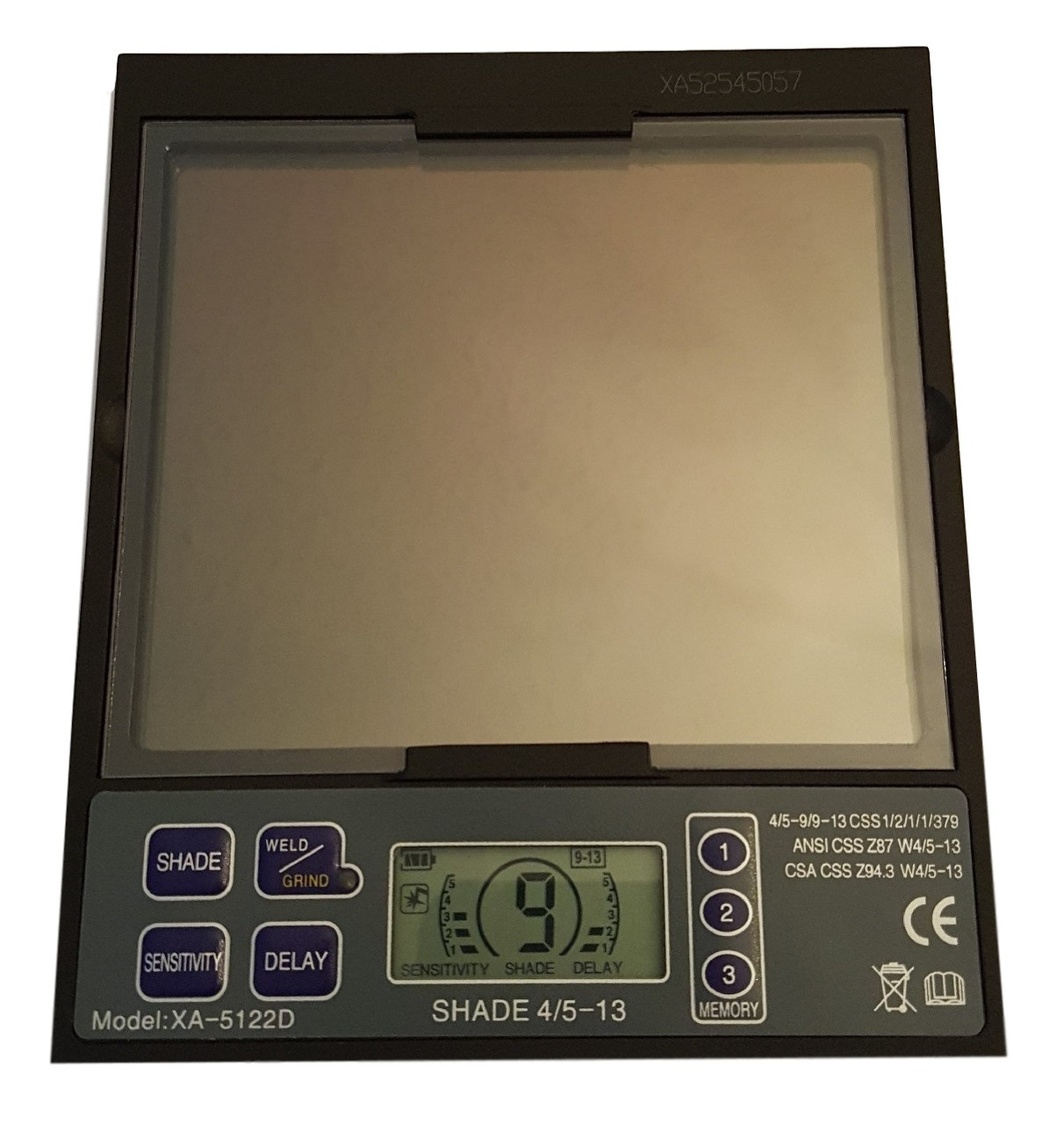

Cartridge Size . . . . . . . . . . . . . . . 114 x 113 x 9.5mm (41/2” x 51/4” x 3/8”)
Viewing Size . . . . . . . . . . . . . . . . 100 x 83.4 mm
Light State Shade . . . . . . . . . . . . . 4
Dark State Shade . . . . . . . . . . . . . 5-9 / 9-13
UV/IR Protection: Up to DIN15
Shade Control . . . . . . . . . . . . . . . Internal, Digital
Grinding Function . . . . . . . . . . . . Digital
Memory settings: 3
Sensitivity Control . . . . . . . . . . . . Adjustable
Switching Time . . . . . . . . . . . . . . 0.08ms
Time from dark to light . . . . . . . . . 0.1 - 0.9s adjustable
Power Supply . . . . . . . . . . . . . . . Solar Cell & Lithium batteries (CR 2450)
Replaceable Batteries . . . . . . . . . . Yes
Arc Sensors . . . . . . . . . . . . . . . . . 4
Operation Temperature . . . . . . . . . -10ºC - 65ºC (14ºF - 149ºF)
UV/IR Protection . . . . . . . . . . . . . . DIN 15
Inside PC lens . . . . . . . . . . . . . . . 106 x 89.5 x 1mm
Outside PC lens . . . . . . . . . . . . . . 114 x 133 x 1mm
Color . . . . . . . . . . . . . . . . . . . . . Shiny Black
Weight . . . . . . . . . . . . . . . . . . . . 599g = 1.32 lbs
Warranty . . . . . . . . . . . . . . . . . . 3 years
