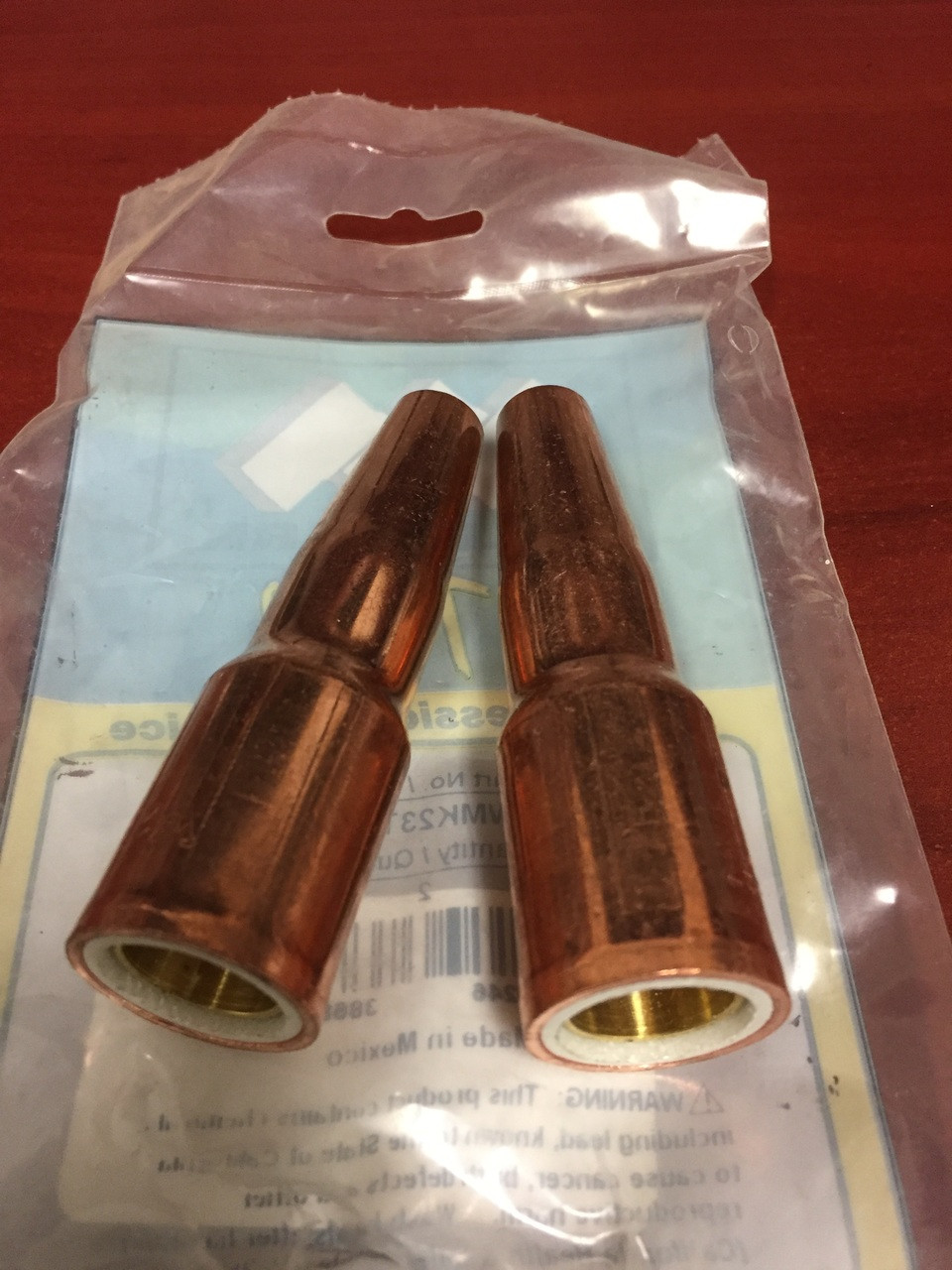

Tweco nozzles 23T-37 - QTY/2
$22.00
Tweco nozzles 23T-37 - QTY/2
$22.00
Product Description
Increase productivity with longer life front end consumables using Tweco® Spray Master MIG gun series with Eliminator front end consumables. Combined with all the advantages of the Spray Master, this new line of MIG guns helps the shop floor lower usage cost with improved operator appeal.
| Included Features | • Used in medium to heavy duty welding application up to 450 amperes • 3-piece nozzle design, includes: • Nozzle Housing - Cut and Formed from copper alloy tubing • Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the conductor tube OD threads • Nozzle insulator - made from silicone material, providing the electrical insulation needed from the gas diffuser |
| Process(es) | GMAW - Air-cooled |
| Bore Size | .375" (9,5mm) |
| Contact Tip Relationship | Recess - .125" (3,17mm) to .156" (3,96mm) |
| Use with Standard Gas Diffuser | Part No. 54P (Stock No. 1540-1103) |
| Part No. 54A (Stock No. 1540-1100) | |
| Part No. 54A-16 (Stock No. 1540-1104) | |
| Standard Package Quantity | 2 Each |
| Tier | WeldSkill |
| Material | Copper Alloy |
| Outside Diameter (in/mm) | .750" (19,5mm) |
| Thread Size | 9/16"-18 UNC-2B |
| Overall Length (in/mm) | 3.219" (81,76mm) |
