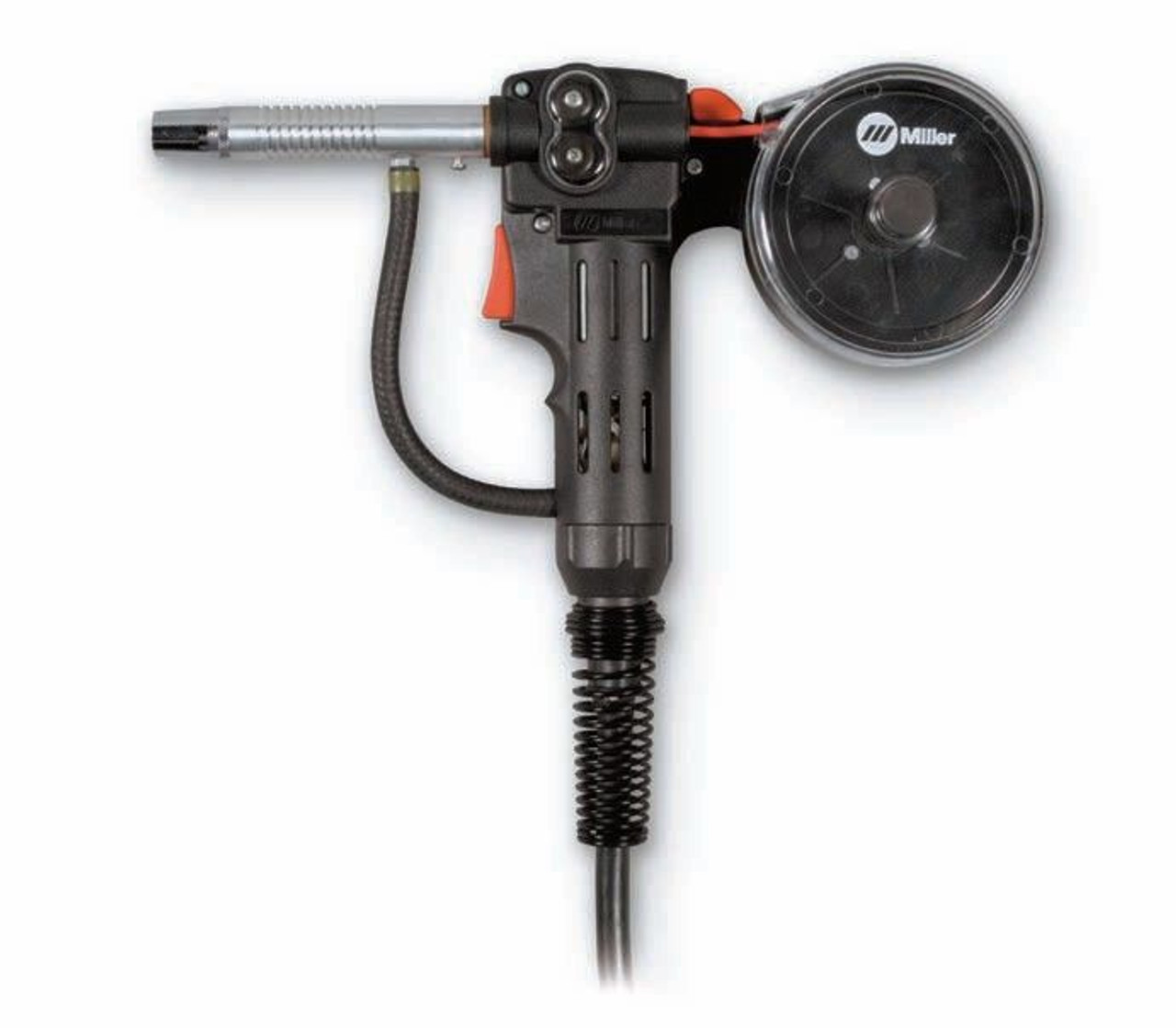

Product Description
Your choice for exceptional aluminum welding results for do-it-yourself projects.
Recommended for use with all Millermatic® 140 and 180 power sources.
Superior features include:
Direct Connect cable allows for easy change over and set-up on aluminum.
Recessed contact tip for easier welding and prevention of burn back issues.
Dual V-knurled drive rolls for consistent feeding.
Adjustable pressure lever for easy unloading and loading of wire.
Adjustable drive roll tension for feeding different types of wire.
Heavy-duty cast-aluminum gearbox and drive motor.
12 ft. cable with heavy-duty strain relief to protect against kinking.
Comes complete with 12 ft. cable, custom carrying case, and extra contact tips and nozzle.
Process
-
MIG (GMAW) with Aluminum, Mild and Stainless Steels.
Applications
Home Hobbyist Applications
-
Aluminum Fabrication
-
Home Maintenance and Repair
-
Auto and Marine Repair
Welding Output Rating
-
135 A at 30% Duty Cycle
Wire Diameter Capacity
-
.030 - .035 in (0.8 - 0.9 mm) aluminum
-
.023 - .035 in (0.6 - 0.9 mm) steel, and stainless steel
Wire Speed
-
MM 140: 5-365 IPM
-
MM 180: 65-625 IPM
Max Spool Size Capacity
-
4 in (102 mm)
Net Weight
-
5 lb (2.3 kg) with cable assembly
