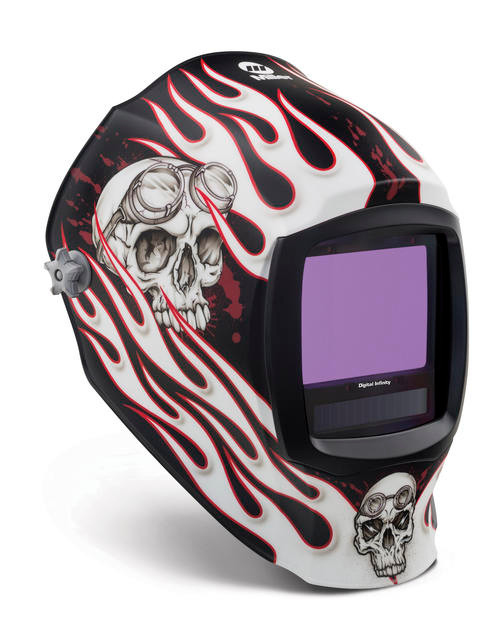

Miller Digital Infinity ADF Helmet 13.4sq in viewable DEPARTED 280048
$402.00
Miller Digital Infinity ADF Helmet 13.4sq in viewable DEPARTED 280048
$402.00
Product Description
The Ultimate Large-View Helmet PLUS Four Modes of Digital Versatility for Intense Applications
- NEW 13.4 sq. in. viewing area provides the largest view in the industry
- NEW Redesigned headgear with oversized comfort cushion provides extensive adjustability, settings, and enhanced support.
- NEW InfoTrack lens technology features arc time tracking, time and timer functions, and a multi-language help menu.
- Four arc sensors for superior lens response
- Four Operating Modes - Weld, Cut, Grind, and X-Mode
- Digital controls allow user to easily adjust mode and settings
- Auto-On/Off power control triggers lens at the strike of an arc
Specs:
- Viewing Area – 13.4 sq. in. 4.4 x 3.1 in (112 x 78 mm)
- Four Arc Sensors – 1/ 20,000 sec. lens speed
- Four Operating Modes –Sensitivity and Delay Control - .10 – 1.0 sec
- Weld Mode - #8-13
- Cut Mode - #5-8
- Grind Mode – Light State #3.5
- X-Mode – Can be used in Shades #8-13
- Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds
- TIG Rating - 5 amps and below
- Lithium batteries (2) – with solar assist; up to 3,000 hours
- Weight - 23 oz (650g)
- Meets ANSI Z87.1+ (2010) and CSA Standards
- Included:
- 5 outside cover lenses
- 2 inside cover lenses
- Helmet bag
