Hypertherm Powermax30 XP plasma system 088079
Hypertherm Powermax30 XP plasma system 088079
Product Description
This is an open box machine. It has been on display in one of our branch locations and may have some cosmetic blemishes to the case.

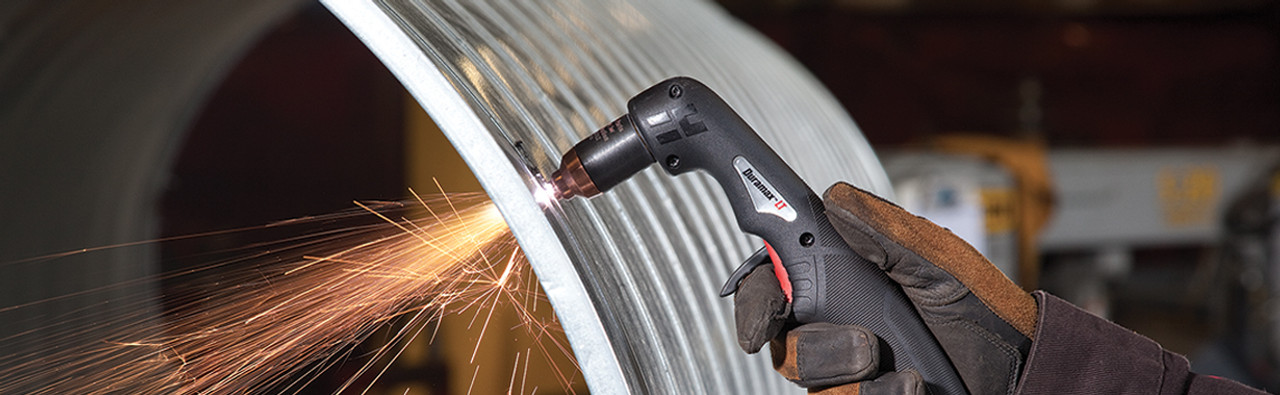

The Powermax30® XP is a highly portable plasma cutting system that can handle a wide range of applications. A unique “two-in-one” design provides high-power capability for thick metal cutting, as well as the FineCut® consumables for detailed, thin metal cutting. The versatile 30 amp system uses air or nitrogen to cut electrically conductive metals, such as mild steel, stainless steel, or aluminum.
Easy to use
- System includes everything you need to get you cutting quickly and easily
- Small size and light weight let you take the Powermax30 XP just about anywhere
- Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)
Superior performance in a compact package

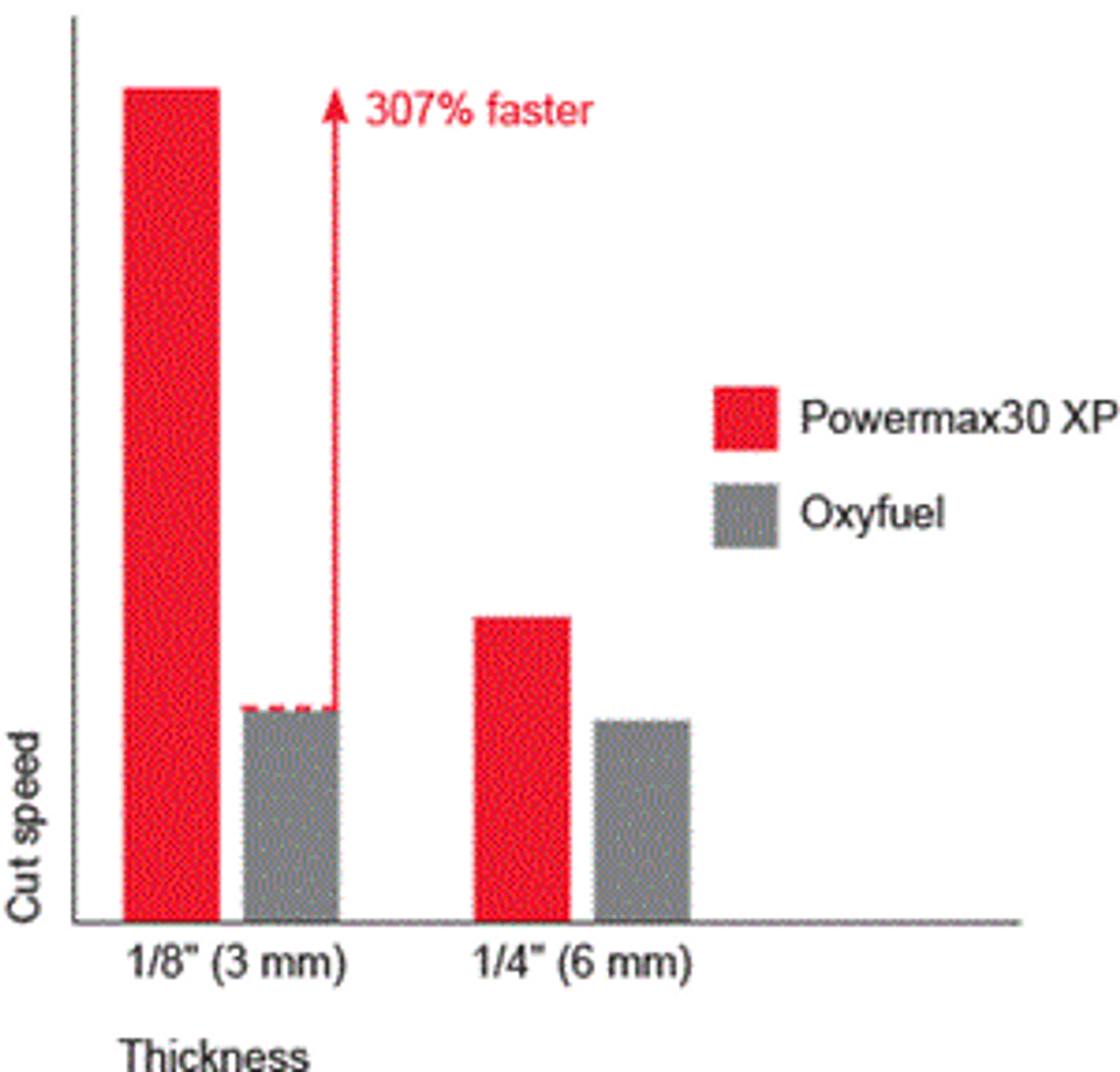

- Fast cutting speeds and excellent cut quality let you finish jobs quicker, with fewer secondary operations
- Built to withstand heavy-duty use in the most demanding environments
“Two-in-one” design for maximum versatility
- High-power cutting on thick metal
- FineCut consumables enable high quality cuts on thin metal, leaving a clean edge and a narrow kerf
System includes:
- Power supply, 4,5 m (15') Duramax LT hand torch with standard consumables, 4,5 m (15') work clamp
- 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA models)
- Operator and safety manuals
- Consumable kit with 1 standard nozzle, 1 electrode, 1 FineCut nozzle and 1 FineCut deflector
- Plastic carry case
- Carrying strap
- Leather gloves*
- Shade 5 glasses*
*The gloves and glasses are currently only available in the system sold in the USA and Canada.
| Input voltages | 120-240 V, 1-PH, 50/60 Hz |
|---|---|
| Input current @ 3.8 kW | 120-240 V, 1-PH, 25-18.8 A |
| Output current | 15-30 A |
| Rated output voltage | 125 VDC |
| Duty cycle @ 40°C (104°F) | 35%, 240 V 20%, 120 V |
| Open circuit voltage (OCV) | 256 VDC |
| Dimensions with handles | 356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H |
| Weight w/ 4,5 m (15') torch | CSA: 9.7 kg (21.4 lbs) CE, CCC: 9.5 kg (21 lbs) |
| Gas Supply | Clean, dry, oil-free air or nitrogen |
| Recommended gas inlet flow rate / pressure |
113.3 l/min (4 scfm) at 5.5 bar (80 psi) |
| Input power cable length | 3 m (10') |
| Power supply type | Inverter - IGBT |
| Engine drive requirement | 5.5 kW for full 30 A output |
| Certifications | CSA-certified for use in the Americas and Asia, except China CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China. |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. |
| Industries | |
| Applications |
Shipping is FREE to 48 states. Please request a quote for other locations.
