Product Description

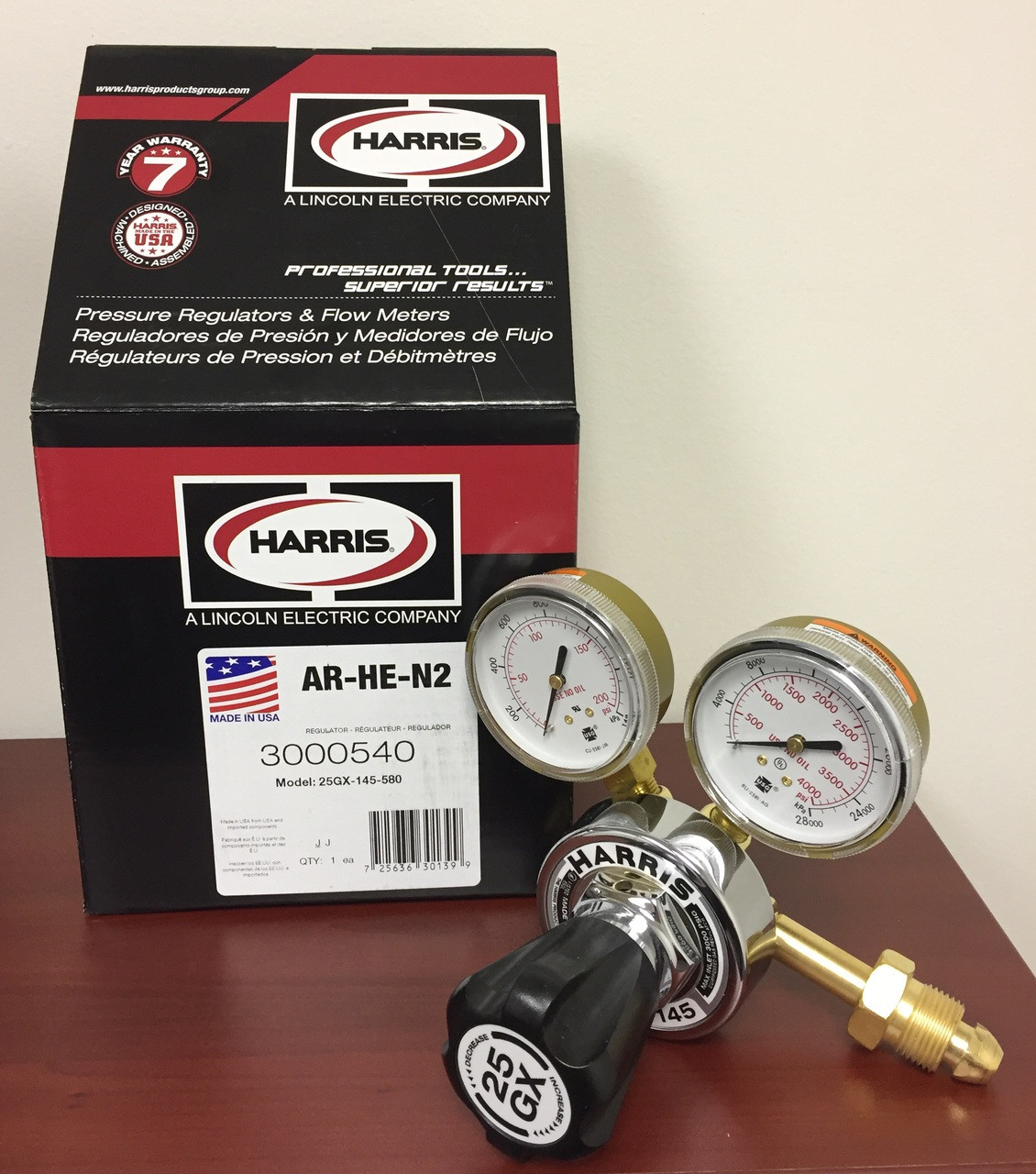

Model 25GX
Description: Single Stage Best Value Regulator
The 25GX is designed to be the next generation workhorse of the Harris industrial regulator line. It features larger, easier to read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.
- Best Value
- 7-year Warranty
- Made in the USA
- Capacity: Medium to Heavy Duty
- Cv: 0.17
- Gauges: 2.5" Steel dual scale
- Pressure Regulation: 0.2 PSIG/100 PSIG
- Seat: One-piece encapsulated seat design with internal filter and a PTFE Teflon® seat
- Certifications: UL® listed/CGA E-4
- Featured In: Steelworker® Classic & V-Series® kits
- Weight: 2.9 lbs. / 1.32 kg.
Materials:
Body: Forged brass
Bonnet: Chrome plated Zamac 3®
Gauges: 2 1/2", steel case, multi-scale guages
Diagphragm: Neoprene, fiber reinforced
Nozzle: Brass
Seats: PTFE Teflon
Filters: Nickel plated sintered bronze 10 micron
Seat Return Spring: PH 17-7 Stainless Steel
Adjusting Knob: ABS, UB resistant, composite knob
Outlet: Brass
WARNING:This product can expose you to chemicals including Lead and lead compounds, 7439-92-1 which are known to the State of California to cause cancer and Lead and lead compounds, 7439-92-1 which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
