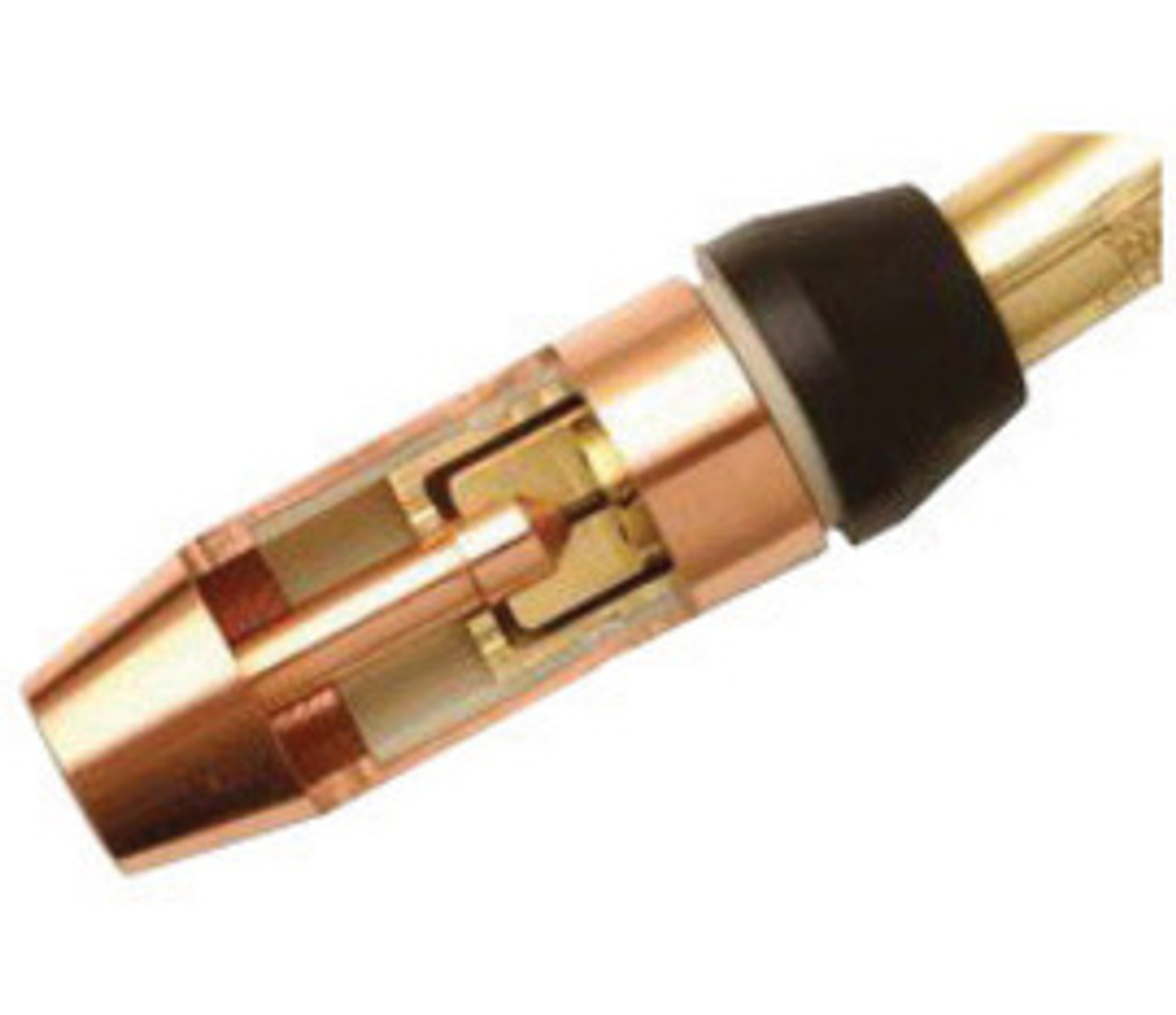

Bernard™ small tapered Centerfire™ nozzle is made of brass, has a 3/8 " bore and positions the tip at 1/8 " recess. Use only with Centerfire TT Series tapered contact tips. Nozzle comes with a built-in spatter shield, which smoothes and concentrates gas flow for lower weld oxidation / contamination. It is ideally suited for use in heavy-duty and light commercial MIG welding applications. Fits all standard air-cooled Bernard™ MIG guns and most competitive brand MIG guns for improved performance. Qty 1.

• Bernard™ Centerfire™ nozzles have a built-in spatter shield that smooth's and concentrates gas flow for less weld oxidation and contamination
• Centerfire nozzles allow fixed tip positioning at flush, 1/8 in and 1/4 in recess and 1/8 in extension for consistent welds
• Small
• No tools required to replace tip or nozzle
• Drop-In tip with no threads means quick change after burn back, reducing down time
• Large diameter tip base and tapered seat provides better electrical conductivity and heat transfer
• Spatter shield within nozzle protects diffuser and gives smoother, less turbulent gas flow
• Solid, concentric relationship between tip and nozzle keeps tip centered even after hard use... and abuse
• Threaded nozzle holds tip fixed at 1/4 in or 1/8 in recess, flush, or 1/8 in stickout
• Complete family of tips and nozzles is available to meet most of your welding needs
• 1/8 in Recessed
